Samstag, 21. Juni 2025

Blade tip replacement discussion






1. Damage Assessment & Engineering




  • Visual and ultrasonic inspection of damage.

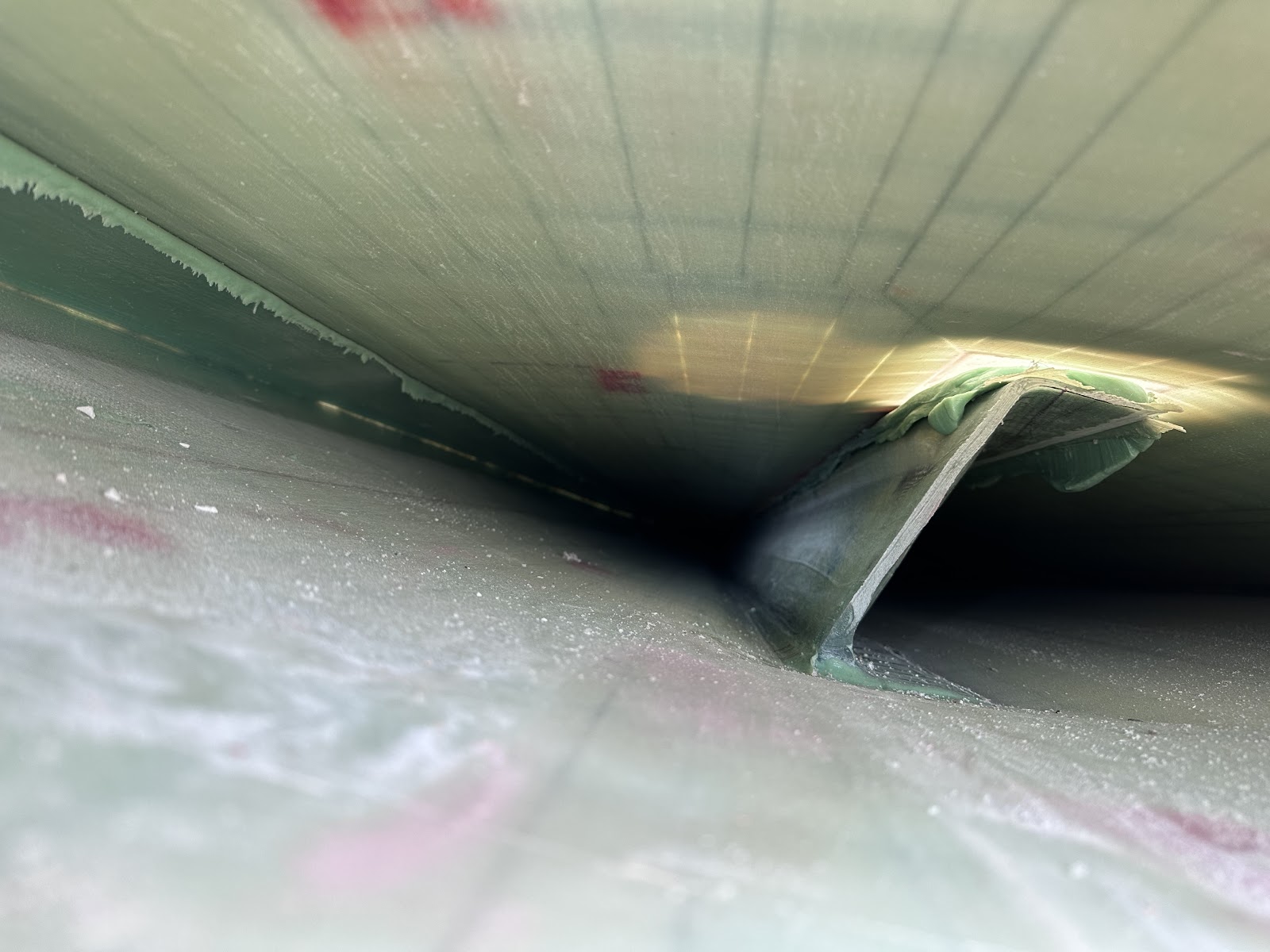

  • Confirm internal spar integrity (shear web, leading/trailing edge).
  • Engineering team defines cut line (structural & aerodynamic node).
  • Approval per Vensys repair standards and TÜV guidelines.






2. Cutting and Preparation of the Existing Blade



  • Mark and cut the blade at the defined 6 m point.
  • Taper or step-scarf joint is usually applied (e.g., 8:1 or 12:1 length-to-thickness ratio) to prepare bonding surfaces.
  • Remove gelcoat and prepare bonding surfaces via sanding and solvent cleaning.
  • Internals (e.g. shear web) are trimmed and prepared for mechanical interface.






3. Fabrication or Delivery of Replacement Tip Section



  • Either:
    • A pre-manufactured tip is supplied by Vensys or certified fabricator.
    • Or, a custom-fabricated composite tip is built using molds and vacuum infusion.

  • Tip section includes leading/trailing edge continuity, and may have embedded sensors or lightning protection to connect.


4. Bonding or Mechanical Interface Assembly





  • Adhesive bonding of shell surfaces (typically two-part epoxy or polyurethane).
  • Spar/Shear web interfaces joined with scarfed laminates or mechanical inserts.
  • Use vacuum bagging or clamping to ensure air-tight bond and correct pressure.
  • Controlled cure under temperature (may use heaters or tented environment).


Approval




5. Finishing and Reinforcement



  • Outer shell laminate patches applied over joint area for strength and airflow smoothing.
  • Sanding and application of gelcoat or blade paint for UV/weather protection.
  • Reconnection of lightning protection system (conductive mesh and testing).






6. Balancing and Quality Checks



  • Static and dynamic mass balancing of the blade.
  • NDT inspection (ultrasonic or thermographic) of the joint.
  • Documentation of all repairs, materials, cure cycles, and test results.







7. Reinstallation and Testing



  • Blade is reinstalled on hub with torque-specific fasteners.
  • Turbine undergoes test operation (load monitoring, vibrations).
  • All actions logged and certified per Vensys and national wind energy authority regulations (e.g. DIBt).
